Product Notes

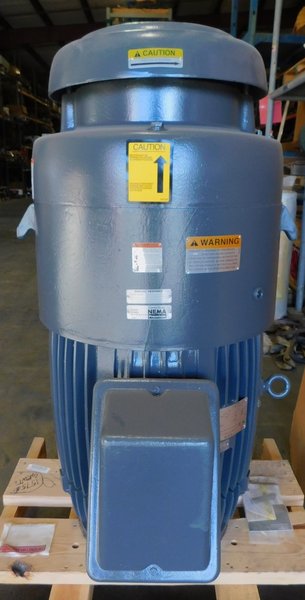

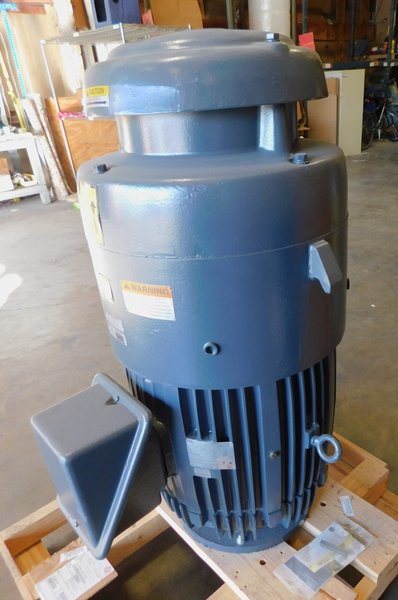

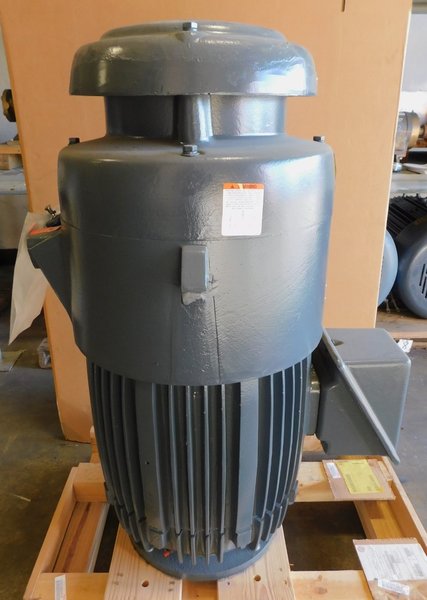

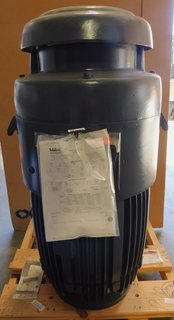

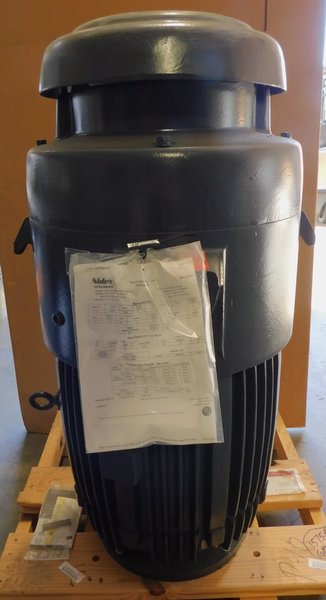

Nidec Vertical Electric Motor

Model: 16701699-100
100 HP
3 Phase
Frame 405VPZ
3560 RPM
460 Volts
114.00 Amps
1.15 SF
60 Hz
TEFC Enclosure

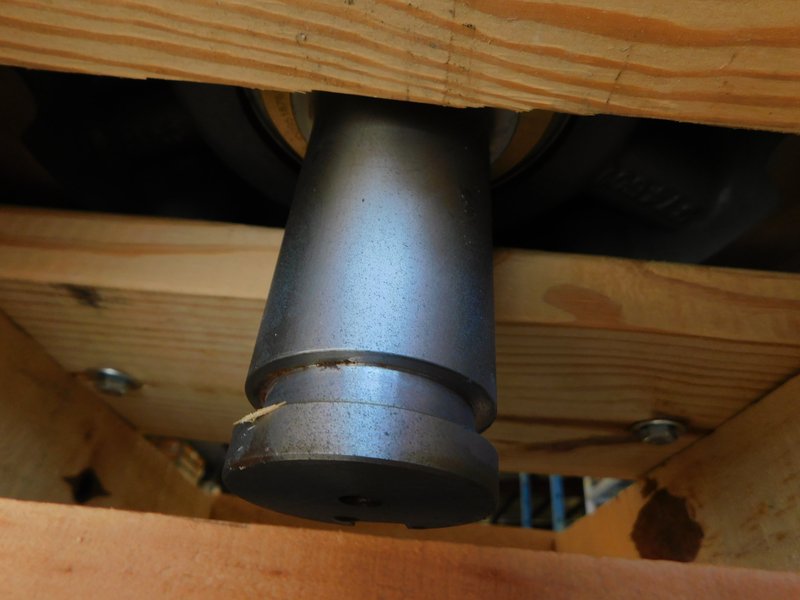

Shaft 2 1/8" diameter x 4 1/2" long

TEFC Enclosure

Random Wound

1.15 Service Factor on Sine Wave Power

Class "F" Insulation

Insulife 2000 Insulation System

3300 Ft.(1000 M) Altitude

+40 C Ambient

Premium Efficiency

Centrifugal Pump Application

16.5 Base Diameter (Inches)

3900 Pricebook Thrust Value (lbs)

6825 lbs Customer Down Thrust

Max Shaft Runout = 0.0010 TIR

Temperature Rise (Sine Wave): Class "B" Rise @ 1.0 Service Factor (by

Resistance)

NEMA Design "B"

Direct-On-Line Start

Continuous Duty

94.1 % Full Load Efficiency,

Typical Efficiency

Driven Load Inertia: NEMA

Standard Load Inertia: 92 LB-FT2

Starts Per Hour: 2 Cold/1 Hot (NEMA

Standard)

Inpro Seal - Pulley End

Brass Drain - Lower Bracket

Corro-Duty w/IEEE-841 Features

175 % Extra High Thrust

Ground Lug In Conduit Box

Grounding Terminal On Frame

Special Balance

AFBMA Number on Main Nameplate

IEEE841+ Enhanced No Load Test -

Unwitnessed

Submittal Requirements: .

Certified Dimension Print

Performance Data

Nameplate Data

Wiring (Connection) Diagram
