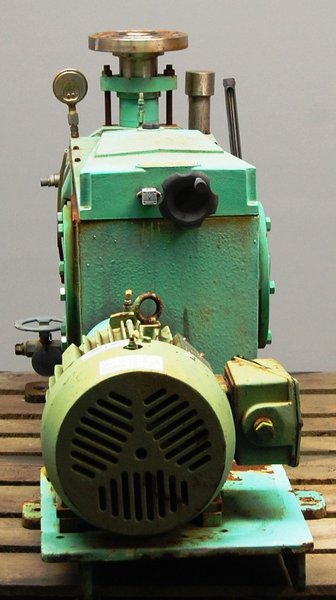

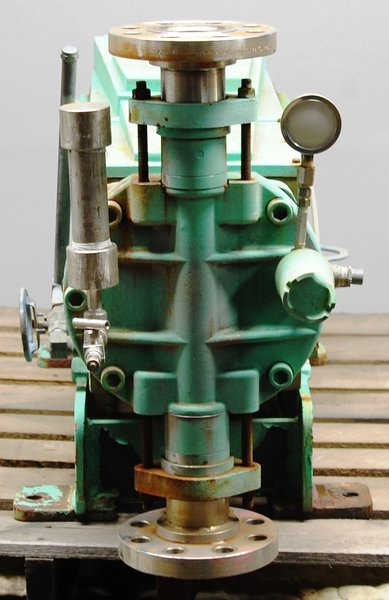

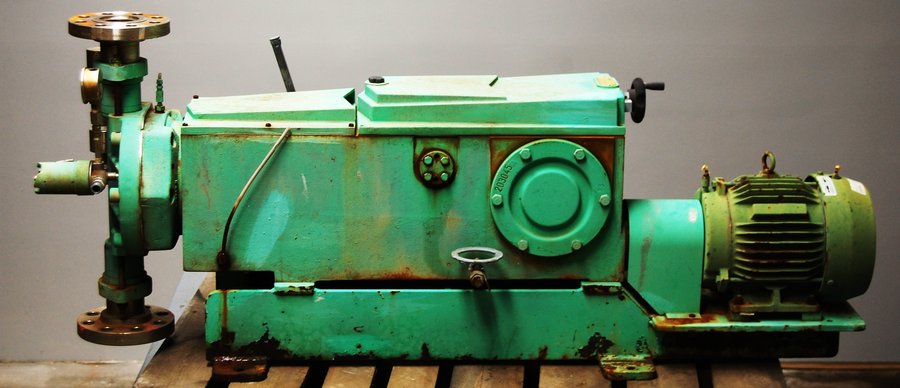

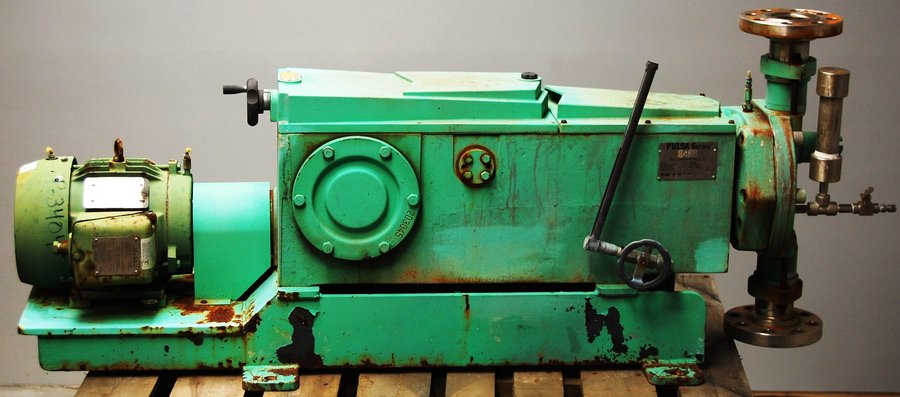

Pulsa 8480S-E Diaphragm Metering Pump 15:5 Ratio 2.5" 28 GPM Port 5HP 184T Motor
image for: Pulsa 8480S-E Diaphragm Metering Pump 15:5 Ratio 2.5" 28 GPM Port 5HP 184T Motor
image for: Pulsa 8480S-E Diaphragm Metering Pump 15:5 Ratio 2.5" 28 GPM Port 5HP 184T Motor
image for: Pulsa 8480S-E Diaphragm Metering Pump 15:5 Ratio 2.5" 28 GPM Port 5HP 184T Motor
image for: Pulsa 8480S-E Diaphragm Metering Pump 15:5 Ratio 2.5" 28 GPM Port 5HP 184T Motor
image for: Pulsa 8480S-E Diaphragm Metering Pump 15:5 Ratio 2.5" 28 GPM Port 5HP 184T Motor
image for: Pulsa 8480S-E Diaphragm Metering Pump 15:5 Ratio 2.5" 28 GPM Port 5HP 184T Motor

Product Notes

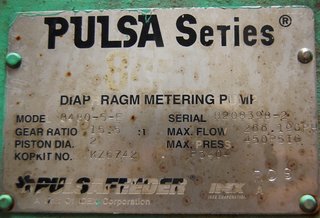

Pulsa
Diaphram Metering Pump
Model 8480S-E
Gear Ratio 15:5
Max Flow 266.196
Max. Pressure 450 PSIG
Piston Dia. 2"
Inlet/Outlet 2.5"
Heads 316
Max. capacity 18 m³/h
Max. viscosity 5000 cP
Max. temperature 350° Celsius
Max. differential head/pressure 250 bar
Max. head 2500
1700 GPH
28.33 GPM

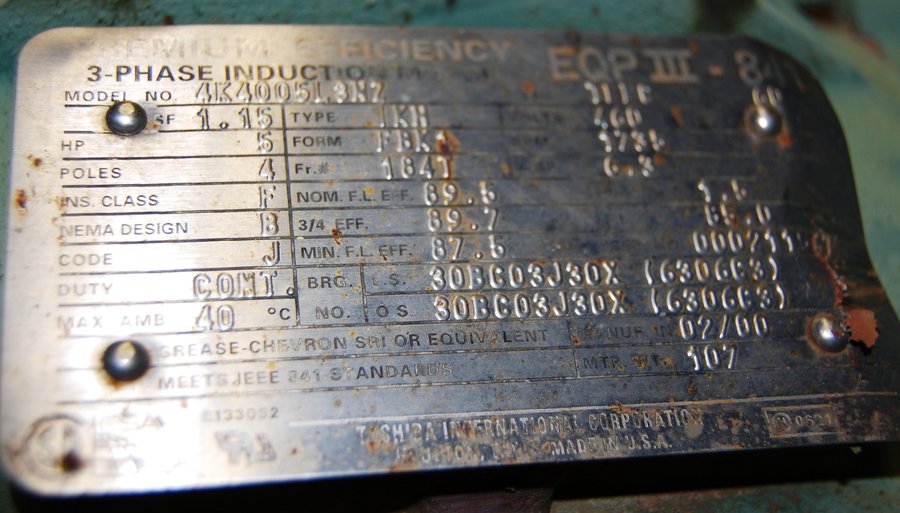

Electric Motor
Model 4K4005L3NZ
HP 5
RPM 1735
Frame 184T
Enclosure TEFC
PH 3
Volts 460
Hertz 60
S.F. 1.15
USED

PUW4001000522
Add this item to your quote cart to get a prompt estimate and additional information.

Category Pumps
Manufacturer Pulsar
Condition USED
Model Pulsa Series 8480
Case Material Body Carbon Steel, Heads 316
V/H H
Inlet (in.) 2.5"
Outlet (in.) 2.5
GPM 266.19
Drive Type Electric Motor
Frame 184T
HP 5
RPM 1735
Phase 3
Hertz 60
Volts 460
Ratio 15:5
PSI 450 PSIG
